Audio Output and WATCHPAX Config

Audio output options and the WATCHPAX Config web interface for the WATCHPAX 50.

Audio

The WATCHPAX 50 has three ways to output audio:

  1. 3.5 mm audio jack -- 2-channel stereo sound via the analog output on the rear panel.
  2. DisplayPort -- 2-channel audio embedded in the DisplayPort signal.
  3. Dante -- sound over Ethernet (requires a license). See Dante License Activation for instructions.

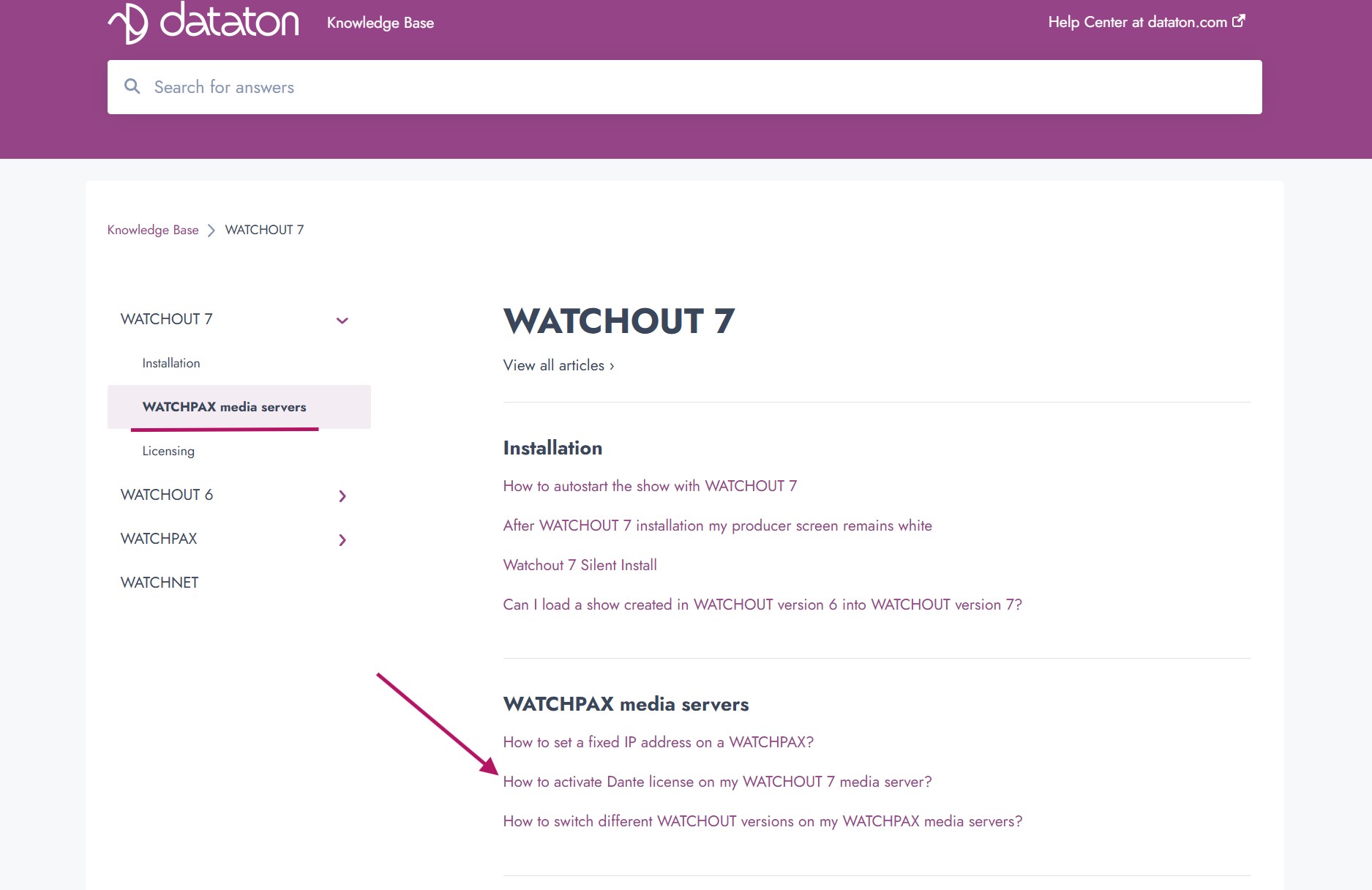

Dante on WATCHPAX 50

Digital Audio Output Rates

  • 44.1 kHz
  • 48 kHz
  • 88.2 kHz
  • 96 kHz
  • 176.4 kHz
  • 192 kHz

WATCHPAX Config

WATCHPAX Config is a browser-based configuration interface served by the WATCHPAX 50 on port 3024. It is used to manage EDID emulation, mosaic configurations, GPU topology, display settings, and network configuration including static IP addresses. For access instructions and a full walkthrough, see Accessing WATCHPAX Config.

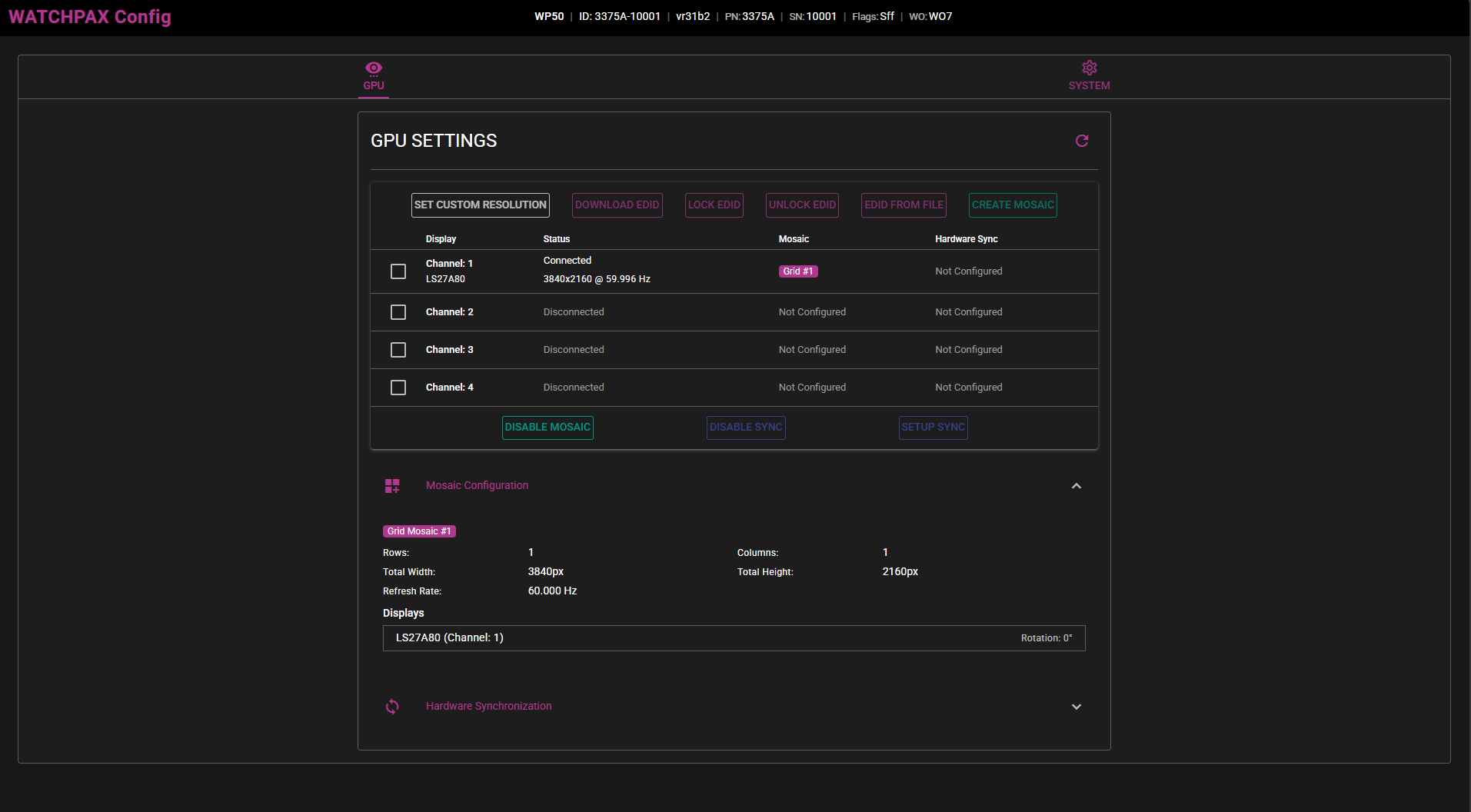

WATCHPAX Config Overview
