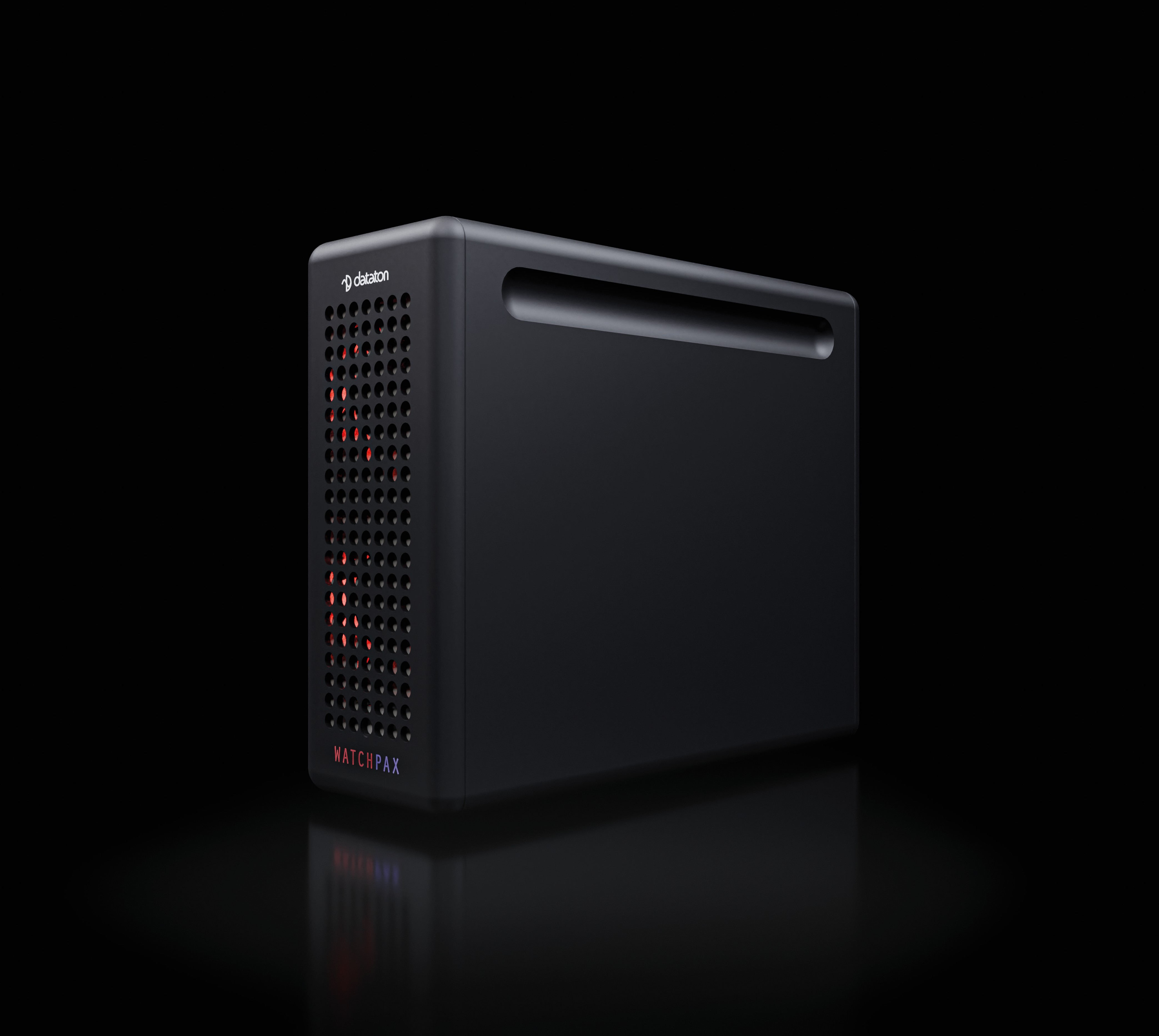

INTRODUCTION TO WATCHPAX 50

WATCHPAX 50 is a dedicated media server purpose-built to run Dataton WATCHOUT shows. Each unit has a built-in license for WATCHOUT 7, and brings quad-output 4k power in an ultra-compact form factor.

Designed for live events, system integration, and fixed installations, the WATCHPAX 50 unites professional-grade performance, rugged reliability, and plug-and-play simplicity into a sleek 3kg aluminium chassis.

WP50

ACCESSORIES

Included:

  • 1 x IEC 60320 10A/250V AC power cord with C5 connector
  • 4 x MiniDP to DisplayPort 1.4 adapters
  • Angle brackets and screws

Available separately:

  • Kit for mounting in 19-inch rack

DIMENSIONS

  • Width 72 mm
  • Height 176 mm
  • Depth 215 mm
  • Weight approx. 3 kg (6.6 lbs)

POWER

  • IEC 60320 C6 power inlet
  • Input voltage 100 – 240V AC
  • Power consumption max 250 W

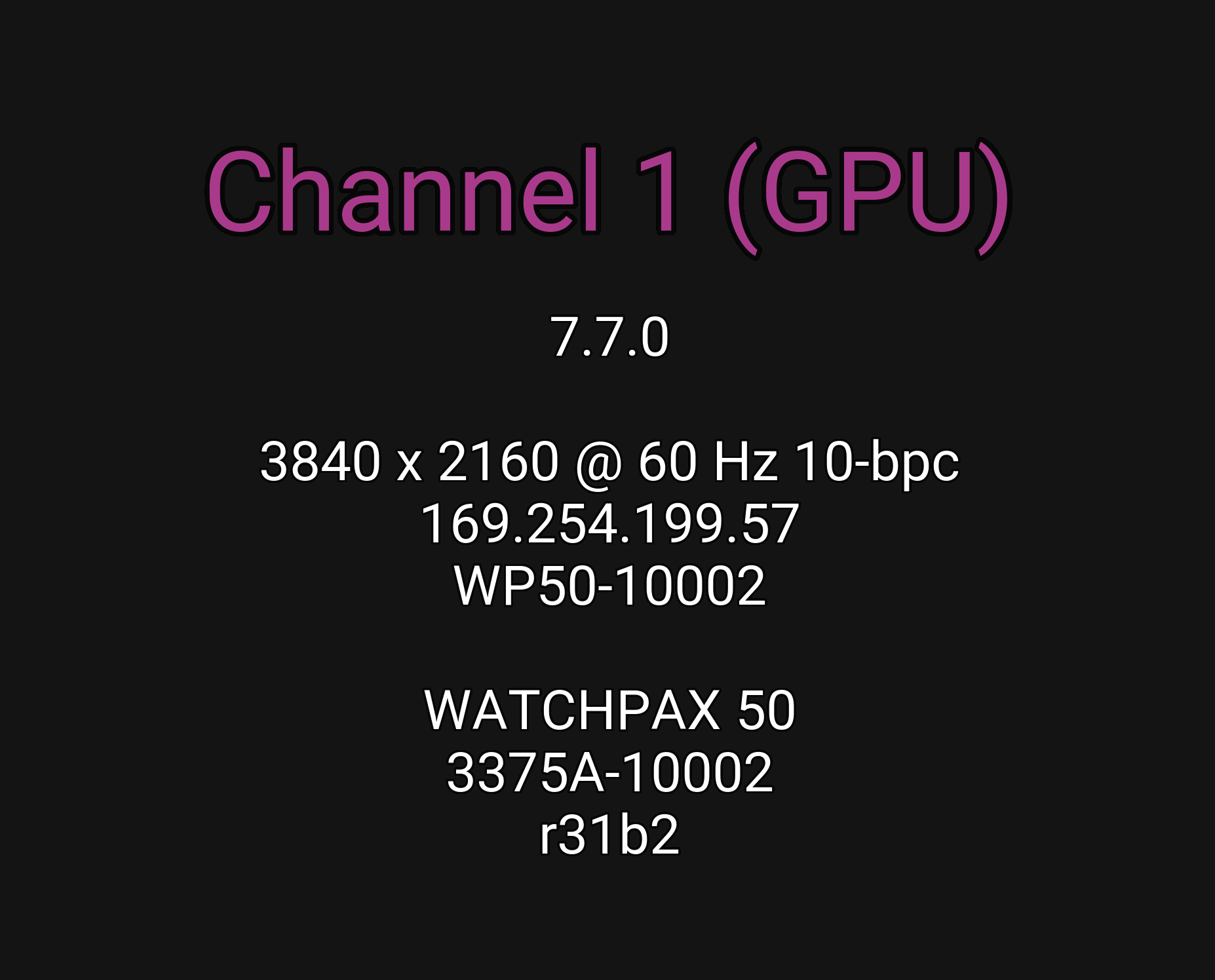

START UP SCREEN

IMPORTANT: The WATCHPAX 50 will always run WATCHOUT 7. It is not compatible with WATCHOUT 6.

The following screen is shown on all display devices connected to the WATCHPAX 50 at start-up.

WP50

ENVIRONMENTAL

Temperature range

  • Operating 0°C to +40°C
  • Storage and transportation -20°C to +40°C

Relative humidity

  • Operating 20% to 85 % (non-condensing)
  • Storage and transportation 10% to 90% (non-condensing)

Altitude

  • Operating, maximum 2000 meters above sea level

MEDIA SERVER OPERATING SYSTEM

The operating system in WATCHPAX 50 has been optimized and licensed for this specific media server configuration.

NOTE: Do not install or attempt to install any software on the locked-down media server (such as drivers, software updates, security updates, virus protection, etc). Doing so will automatically void the unit's warranty.

For better security, media servers are recommended to be installed and operate on a separate network, without access to other networks.

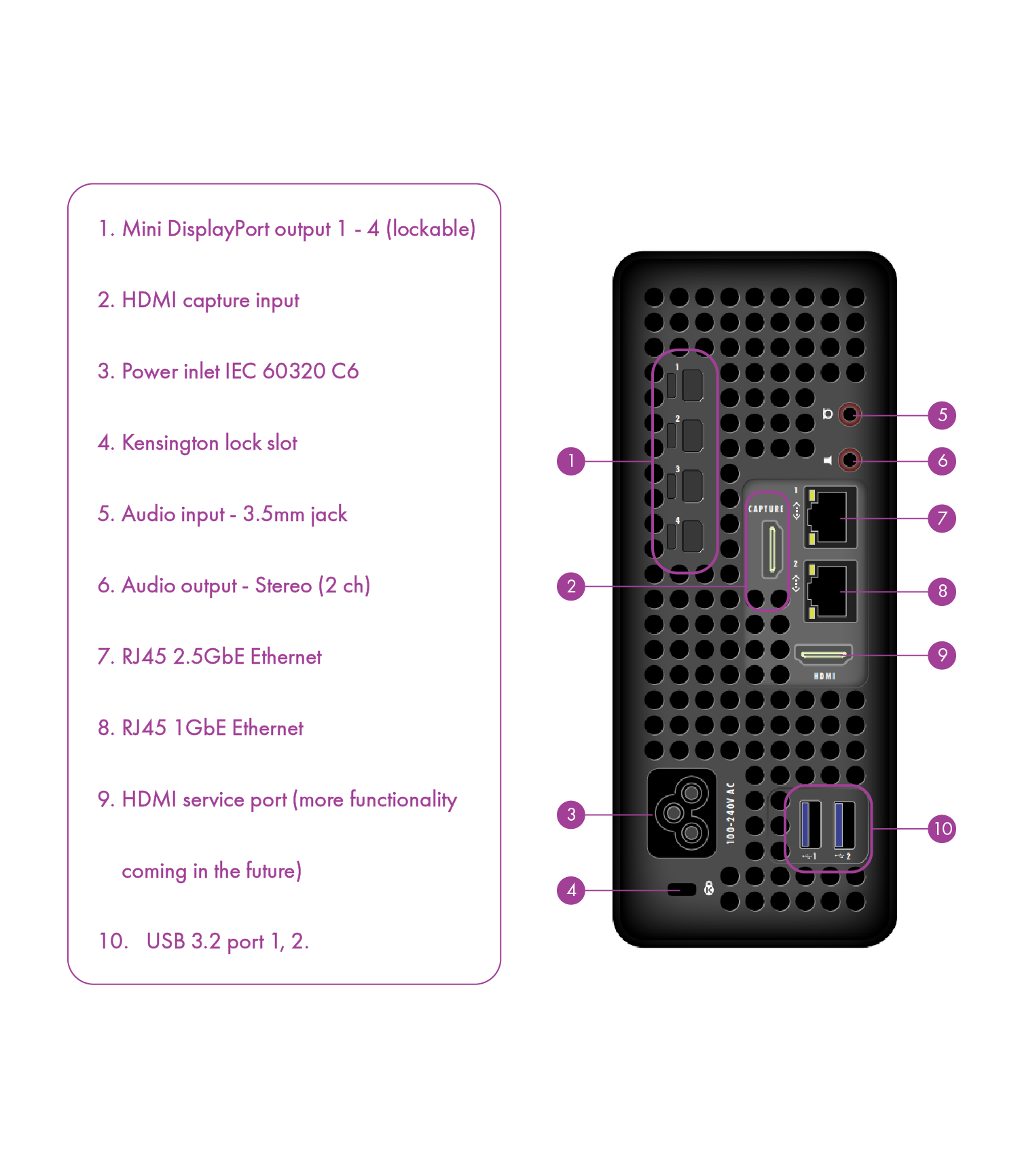

CONNECTORS

WP50 WP50
